Product number LA00163564

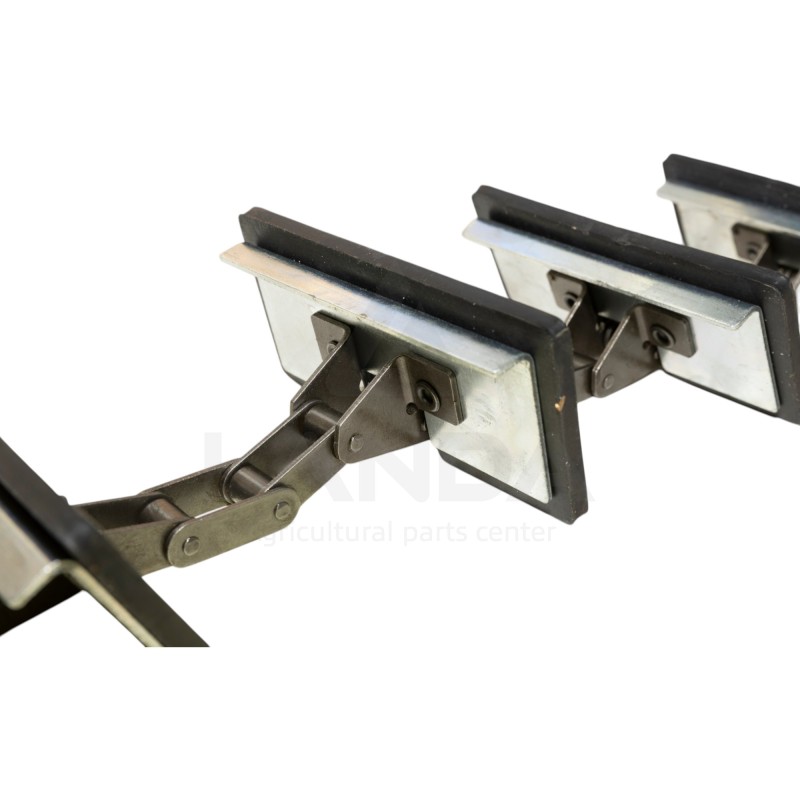

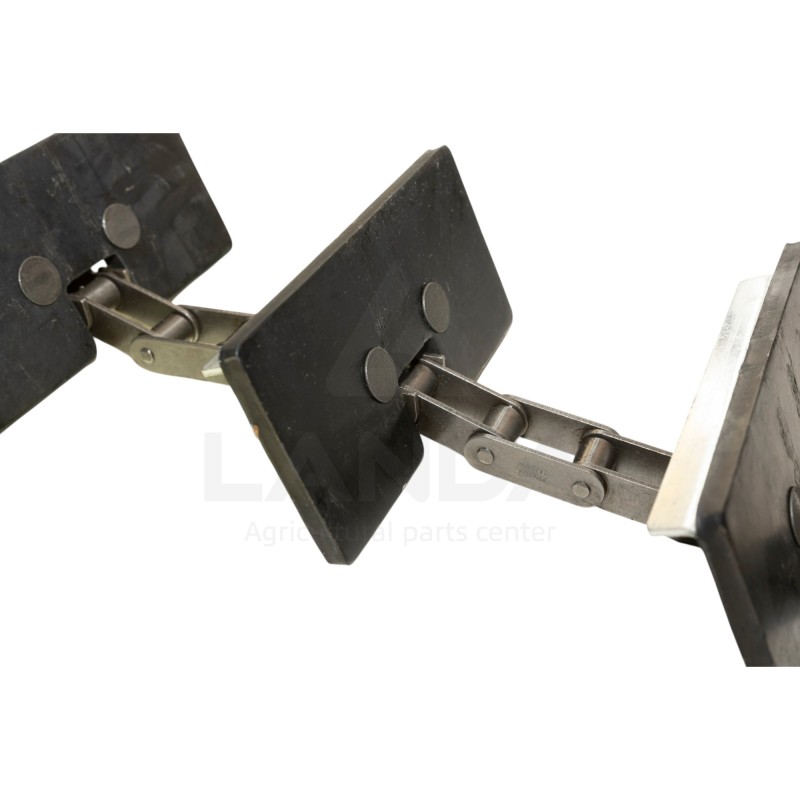

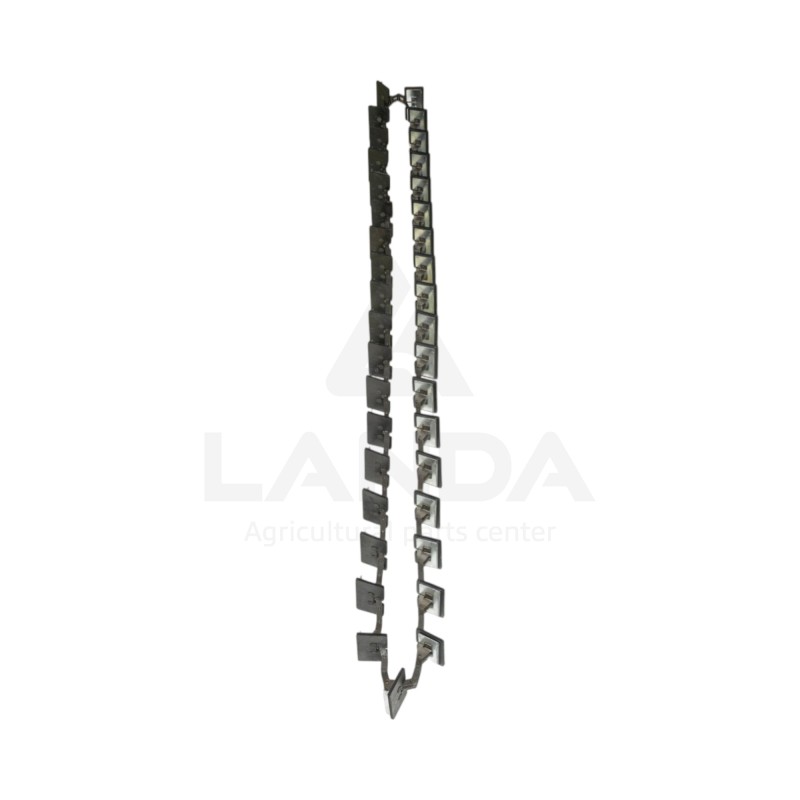

COMPLETE REINFORCED ELEVATOR CHAIN 37 PALLETS
Fast delivery
Secure payment
Easy return policy
- Pitch
- 41,4
- Roller diameter
- 16,74
- Pin diameter
- 8,28
- Pin length
- 36,1
- Distance between inner plates
- 20
- Plate height
- 20
- Packaging (chain)
- Ready to fit
- Additionnal information
- chaine élévatrive palette rivetée 148 maillons y compris 4 mc ( 2 en extrémité et 2 au milieu de la chaine )
- Number of paddles
- 37
- Type of holder (elevator/conveyor chains)
- F1
- Holder pitch (elevator conveyor chains)
- 4 links
- Number of links
- 148
- Finish (elevator/conveyor chains)
- Raw
- Line (elevator chains)
- CA550H
- Performance (chains)
- Reinforced
- Plate thickness
- 3
- Holder total width
- 90
- Hole diameter
- 8
- Centre distance between holes
- 58
- Paddle dimensions (elevator chains) (L x l x h - mm)
- 190x95x9
- Offset link
- 4
- Renfort
- oui
- Référence
- 47949285
- Référence
- 84145229
- Référence
- 84437418
- Référence
- 87373426
- Référence
- 87373433
- Référence
- 87538988
- Référence
- LA00116380
- Référence
- LA00163564
- NEW HOLLAND
- CR 10.90, CR 10.90 REVELATION, CR 7.80 REVELATION, CR 7.90, CR 7.90 REVELATION, CR 8.80, CR 8.80 REVELATION, CR 8.90, CR 8.90 REVELATION, CR 8070 ECOBlue™, CR 8080 ECOBlue™, CR 9.80, CR 9.80 REVELATION, CR 9.90, CR 9.90 REVELATION, CR 9060, CR 9060 ELEVATION, CR 9070 ECOBlue™, CR 9070 ELEVATION, CR 9080, CR 9080 ECOBlue™, CR 9080 ELEVATION, CR 9090 ECOBlue™, CR 9090 ELEVATION, CR 960, CR 980, CX 7.80, CX 7.90, CX 7080 ELEVATION, CX 7090 ELEVATION, CX 720, CX 740, CX 760, CX 780, CX 8.70, CX 8.80, CX 8.85, CX 8.90, CX 8030, CX 8040, CX 8040 ECOBlue™, CX 8050, CX 8050 ECOBlue™, CX 8060, CX 8070, CX 8070 ECOBlue™, CX 8070 ELEVATION, CX 8080, CX 8080 ECOBlue™, CX 8080 ELEVATION, CX 8090, CX 8090 ECOBlue™, CX 8090 ELEVATION, CX 820, CX 840, CX 860, CX 880
- Pitch
- 41,4
- Roller diameter
- 16,74
- Pin diameter
- 8,28
- Pin length
- 36,1
- Distance between inner plates
- 20
- Plate height
- 20
- Packaging (chain)
- Ready to fit
- Additionnal information
- chaine élévatrive palette rivetée 148 maillons y compris 4 mc ( 2 en extrémité et 2 au milieu de la chaine )
- Number of paddles
- 37
- Type of holder (elevator/conveyor chains)
- F1
- Holder pitch (elevator conveyor chains)
- 4 links
- Number of links
- 148
- Finish (elevator/conveyor chains)
- Raw
- Line (elevator chains)
- CA550H
- Performance (chains)
- Reinforced
- Plate thickness
- 3
- Holder total width
- 90
- Hole diameter
- 8
- Centre distance between holes
- 58
- Paddle dimensions (elevator chains) (L x l x h - mm)
- 190x95x9
- Offset link
- 4
- Renfort
- oui
- Référence
- 47949285
- Référence
- 84145229
- Référence
- 84437418
- Référence
- 87373426
- Référence
- 87373433
- Référence
- 87538988
- Référence
- LA00116380
- Référence
- LA00163564
- NEW HOLLAND
- CR 10.90, CR 10.90 REVELATION, CR 7.80 REVELATION, CR 7.90, CR 7.90 REVELATION, CR 8.80, CR 8.80 REVELATION, CR 8.90, CR 8.90 REVELATION, CR 8070 ECOBlue™, CR 8080 ECOBlue™, CR 9.80, CR 9.80 REVELATION, CR 9.90, CR 9.90 REVELATION, CR 9060, CR 9060 ELEVATION, CR 9070 ECOBlue™, CR 9070 ELEVATION, CR 9080, CR 9080 ECOBlue™, CR 9080 ELEVATION, CR 9090 ECOBlue™, CR 9090 ELEVATION, CR 960, CR 980, CX 7.80, CX 7.90, CX 7080 ELEVATION, CX 7090 ELEVATION, CX 720, CX 740, CX 760, CX 780, CX 8.70, CX 8.80, CX 8.85, CX 8.90, CX 8030, CX 8040, CX 8040 ECOBlue™, CX 8050, CX 8050 ECOBlue™, CX 8060, CX 8070, CX 8070 ECOBlue™, CX 8070 ELEVATION, CX 8080, CX 8080 ECOBlue™, CX 8080 ELEVATION, CX 8090, CX 8090 ECOBlue™, CX 8090 ELEVATION, CX 820, CX 840, CX 860, CX 880
